Height and distance is an important topic from competitive examination point of view. You must have seen the problems where the height of one tower is given, and then the top or bottom angles of another tower are given from the top of that tower, and you need to determine the height of the second tower. In this article, we will cover such problems to help students understand the concept well. Further, to help students understand the concepts clearly, we are also offering chapter wise solutions that consists of JEE previous year solved questions. Every solution of this study material is arranged in a systematic manner in order to give students an easy learning experience while solving the questions. Students are advised to download these solutions and practice to crack the JEE exams.

Terms used in Heights and Distances

There are certain terms used while dealing with topic-height and distance which are described as follows: Ray of Vision: The ray from the eye of the observer towards the object under observation. Angle of Elevation: If the object under observation is above the horizontal ray passing through the point of observation, the measure of the angle formed by the horizontal ray and the ray of vision. Angle of Depression: If the object under observation is below the horizontal ray passing through the point of observation, the measure of the angle formed by the horizontal ray and the ray of vision.

JEE Main Past Year Questions (PYQs) With Solutions on Height and Distance

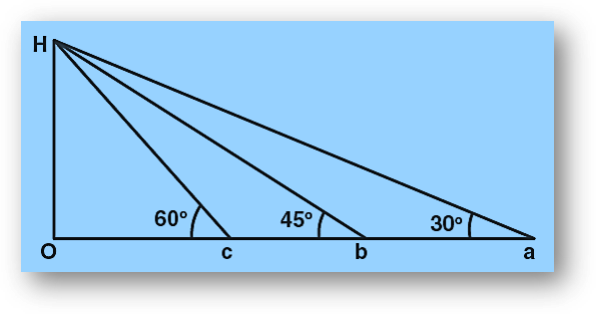

Question 1: If the angles of elevation of the top of a tower from three collinear points A, B and C, on a line leading to the foot of the tower, are 30°, 45°, and 60°, respectively, then the ratio AB: BC, is:

(a) 1: √3

(b) 2:3

(c) √3 : 1

(d) √3 : √2

Answer: (c)

Solution:

Let OH = h

From triangle HOC, tan 60° = h/OC

⇒ OC = h/√3

From triangle, HOA, tan 30° = h/OA

⇒ OA = h√3

From triangle, HOB, tan 45° = h/OB

⇒ OB = h

Now, AB = OA – OB = h(√3 – 1)

BC = OB – OC = h(1 – 1/√3) = (h/√3) (√3 – 1)

AB : BC = h(√3 – 1) : h/√3 (√3 – 1)

⇒ AB : BC = √3 : 1

Question 2: A tower subtends an angle α at a point on the same level as the foot of the tower and at the second point, b metres above the first, the angle of depression of the foot of the tower is β. The height of the tower is

(a) b cot α tan β

(b) b tan α tan β

(c) b tan α cot β

(d) None of these

Answer: (c)

Solution:

From figure,

In right triangle, ABD,

AB/BD = tan α

h/x = tan α => h = x tan α

Again, from the right triangle, BCE,

BE/EC = tan β

⇒ b/x = tan β

⇒ x = b/(tan β), substitute in above equation, we get

h = b/(tan β) × tan α = b cot β tan α

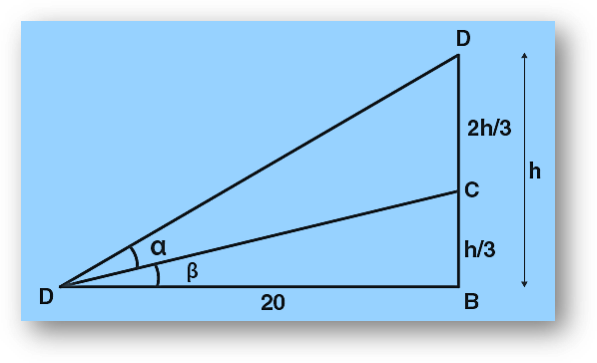

Question 3: A vertical pole consists of two parts, the lower part being one third of the whole. At a point in the horizontal plane through the base of the pole and distance 20m from it, the upper part of the pole subtends an angle whose tangent is 1/2. The possible heights of the pole are –

(a) 20 m and 20√3 m

(b) 20 m and 60 m

(c) 16 m and 48 m

(d) None of these

Answer: (b)

Solution:

In triangle, BAC

tan β = (h/3)/20 = h/60

In triangle BAD,

tan(α + β) = h/20

[We know, tan(x + y) = [tan x – tan y]/[1 – tan x tan y]]

((1/2) + (h/60))/(1 – h/120) = h/20

[60+2h]/[120-h] = h/20

⇒ h² – 80h + 1200 = 0

⇒ h = 20 m and 60 m

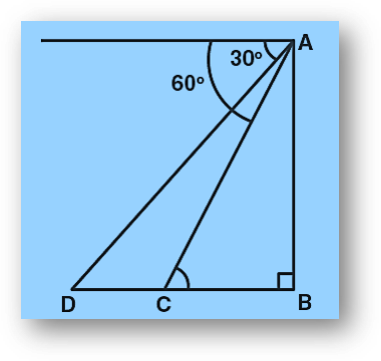

Question 4: An observer on the top of a tree finds the angle of depression of a car moving towards the tree to be 30⁰. After 3 min this angle becomes 60°. After how much more time will the car reach the tree

(a) 4 min

(b)  1.5 min

(c) 4.5 min

(d) 2 min

Answer: (b)

Solution:

Let x unit/min be the speed of car.

DC = 3x

Let h be the height.

Here angle ACB = 60° and angle ADB = 30°

In right triangle ABC,

tan 60 = h/BC

BC = h cot 60°

In triangle, ADB

tan 30° = h/BD

⇒ BD = h cot 30°

CD = BD – BC

⇒ d = h cot 30°– h cot 60°

Speed of the car = h(cot 30°– cot 60°)/3

Time taken to travel BC = h cot 60°× 3/h(cot 30°– cot 60°)

= 3/2

= 1.5 min

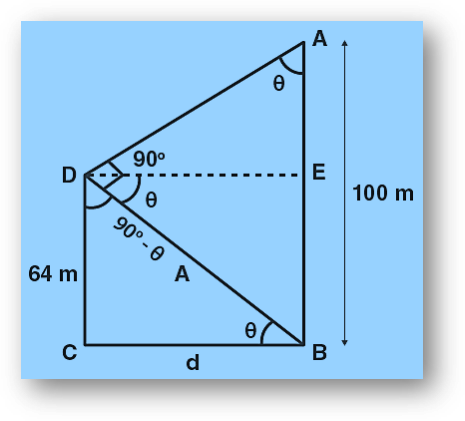

Question 5: A house of height 100 m subtends a right angle at the window of an opposite house. If the height of the window is 64 m, then the distance between the two houses is

(a) 48 m

(b) 36 m

(c) 54 m

(d) 72 m

Answer: 48 m

Solution:

In triangle BCD,

tan θ = 64/d

In triangle AED,

(100- 64) tan θ = d

⇒ 36(64/d) = d

⇒ d² = 36 × 64

⇒ d = 6 × 8 = 48 m

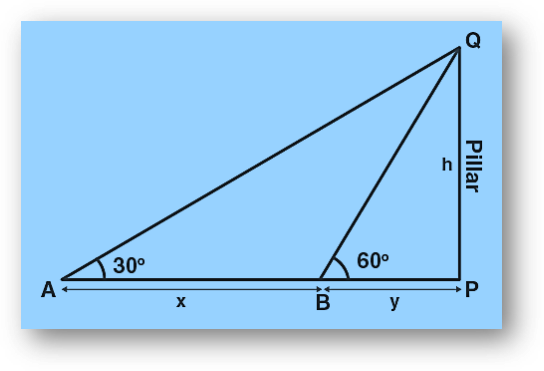

Question 6: A man is walking towards a vertical pillar in a straight path, at uniform speed. At a certain point A on the path, he observes that the angle of elevation of the top of the pillar is 30°. After walking for 10 minutes from A in the same direction, at a point B, he observes that the angle of elevation of the top of the pillar is 60°. Then the time taken (in minutes) by him, from B to reach the pillar, is?

(a) 5

(b) 6

(c) 10

(d) 20

Answer: (a)

Solution:

In triangle QPB: tan 60° = h/y => h = √3 y

In triangle QPA: tan 30° = h/(x+y) => √3h = x + y

From above equations, we have

√3(√3 y) = x + y

3y = x + y

⇒ y = x/2

As speed is uniform,

To go with x, it takes around 10 min and with x/2, it takes around 5 min.

Question 7: The angle of elevation of a tower at a point distant d meters from its base is 30°?. If the tower is 20 meters high, then the value of d is

(a) 10√3 m

(b) 20√3 m

(c) 10 m

(d) 20/√3 m

Answer: (b)

Solution:

20 cot 30° = d

⇒ d = 20√3 m

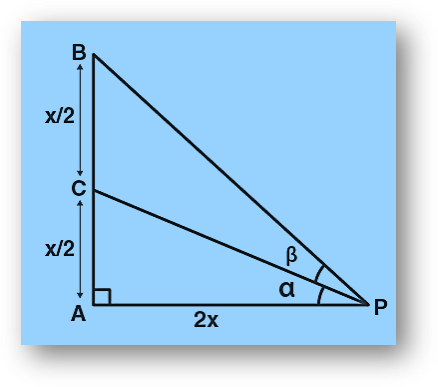

Question 8: Let a vertical tower AB have its end A on the level ground. Let C be the mid-point of AB and P be a point on the ground such that AP = 2AB. If ∠BPC = β, then tanβ is equal to.

(a) 1/4

(b) 6/7

(c) 1/4

(d) 2/9

Answer: (d)

Solution:

Let AB = x, then AP = 2AB = 2x

In right triangle ABP,

BP² = AP² + AB²

BP² = (2x)² + x² = 5x²

⇒ BP = √5 x

Also, AC = x/2

and tan α = (x/2)/2x = 1/4

tan(α + β) = x/2x = 1/2

Now,

\(\begin{array}{l}\frac{tan \alpha + tan \beta}{1 – tan \alpha \; tan \beta} = \frac{1}{2}\end{array} \)

⇒ 2(tanα + tanβ) = 1 – tanα tanβ

⇒ 2(1/4 + tanβ) = 1 – (1/4) tanβ

Solving above equation, we get

tan β = 2/9

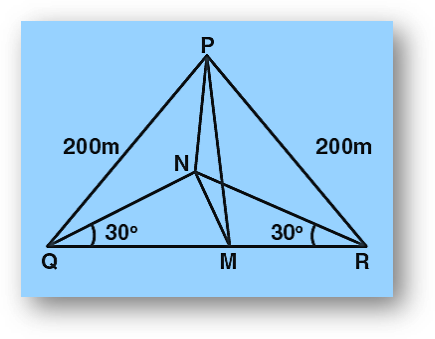

Question 9: PQR is a triangular park with PQ = PR = 200 m. A T.V. tower stands at the mid-point of QR. If the angles of elevation of the top of the tower at P, Q and R are respectively 45°, 30° and 30°, then the height of the tower (in m) is,

(a) 50√2

(b) 100

(c) 70

(d) 100√3

Answer: (b)

Solution:

In triangle MNQ,

tan 30 = MN/QM = h/QM = 1/√3

QM = √3 h = MR

In triangle PMQ,

(PQ)² = (MP)² + (MQ)²

200² = h² + (√3h) ²

or h = 100 m

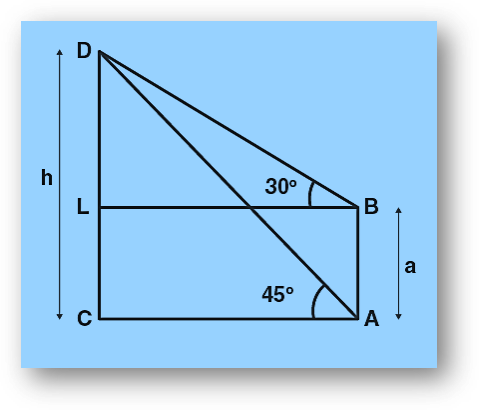

Question 10: The angle of elevation of the top of a tower from the top and bottom of a building of height a are 30° and 45° respectively. If the tower and the building stand at the same level, then what is the height of the tower?

Solution:

Here CD = Tower of height h and AB = building of height a

In right triangle BLD, tan 30° = (h-a)/LB

⇒ LB = (h-a)/tan 30° = √3(h – a)

From right triangle ACD, tan 45° = h/AC

Here AC = LB

Or h(√3 – 1) = √3 a

or h = √3a/(√3-1) = [√3a(√3+1)]/2

Therefore, h = [(3 + √3)a]/2

Other Important Questions:

Question 11: At a distance 2h from the foot of a tower of height h, the tower and a pole at the top of the tower subtend equal angles. Height of the pole should be,

(a) 5h/3

(b) 4h/3

(c) 7h/5

(d) 3h/2

Answer: (a)

Solution:

Let α be the angle and p be the height of the pole.

tan α = 1/2 and tan 2α = (p+h)/2h

we know, tan 2α = 2tanα/(1-tan²α)

⇒ (p + h)/2h = 1/(1-1/4)

⇒ (p + h)/2h = 4/3

⇒ p = 5h/3

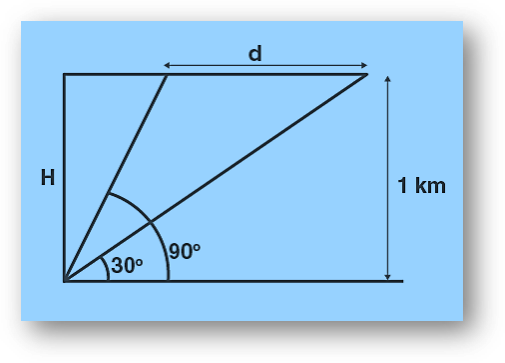

Question 12: An aeroplane flying horizontally 1 km above the ground is observed at an elevation of 60° and after 10 seconds the elevation is observed to be 30°. The uniform speed of the aeroplane in kmph is.

(a) 240

(b) 240√3

(c) 60√3

(d) None of these

Answer: (b)

Solution:

d = H cot 30° – H cot 60°

Time taken = 10 sec

So, speed = ([cot 30° – cot 60°]/10) × 60 × 60 = 240√3

Question 13:

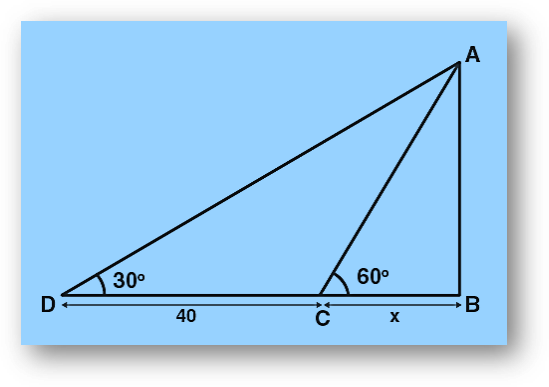

A person, standing on the bank of a river observes that the angle subtended by a tree on the opposite bank is 60°, when he retreats 40 m from the bank, he finds the angle to be 30°. The height of the tree and the breadth of the river are.

(a) 10√3 m and 10 m

(b) 20√3 m and 10 m

(c) 20√3 m and 20 m

(d) None of these

Answer: (c)

Solution:

Let AB= h be the height of the tree and CB = x, the breadth of the river.

Here angle BDA = 30°

From right triangle, ABC,

tan 60° = AB/BC => h/x = √3

⇒ h = √3 x …..(i)

From right triangle, ABD,

tan 30° = AB/BD

⇒ 1/√3 = h/(40 + x)

⇒ √3 h = 40 + x

Using (i), we get

(√3) √3x = 40 + x

⇒ 3x = 40 + x

or x = 20

(i)⇒ h = √3 x 20 = 20√3

Thus, the height of the tree = 20√3 and

breadth of the river = 20 m
