How are Shapes of Molecules Explained on the Basis of VSEPR Theory?

This theory is very simple to use. In this theory, no distinction is made between s- and p-electrons. We take into account only the number of electron pairs present in the valence shell of the central atom.

Thus, the particular geometry of a molecule depends upon the number of electron pairs around the central atom.

• If there are two electron pairs around the central atom, the only way to keep them as far apart as possible is to arrange them at an angle of 180^o to each other. The molecule in such a case will adopt linear geometry.
• For three electron pairs around the central atom, the molecule adopts trigonal planar geometry.
• For four electron pairs around the central atom, the molecule adopts tetrahedral geometry.
• The molecules having five electron pairs around the central atom adopt trigonal bipyramidal geometry.
• The molecules having six electron pairs around the central atom adopt octahedral geometry.

---

What are the Shapes of Molecules According to VSEPR Theory?

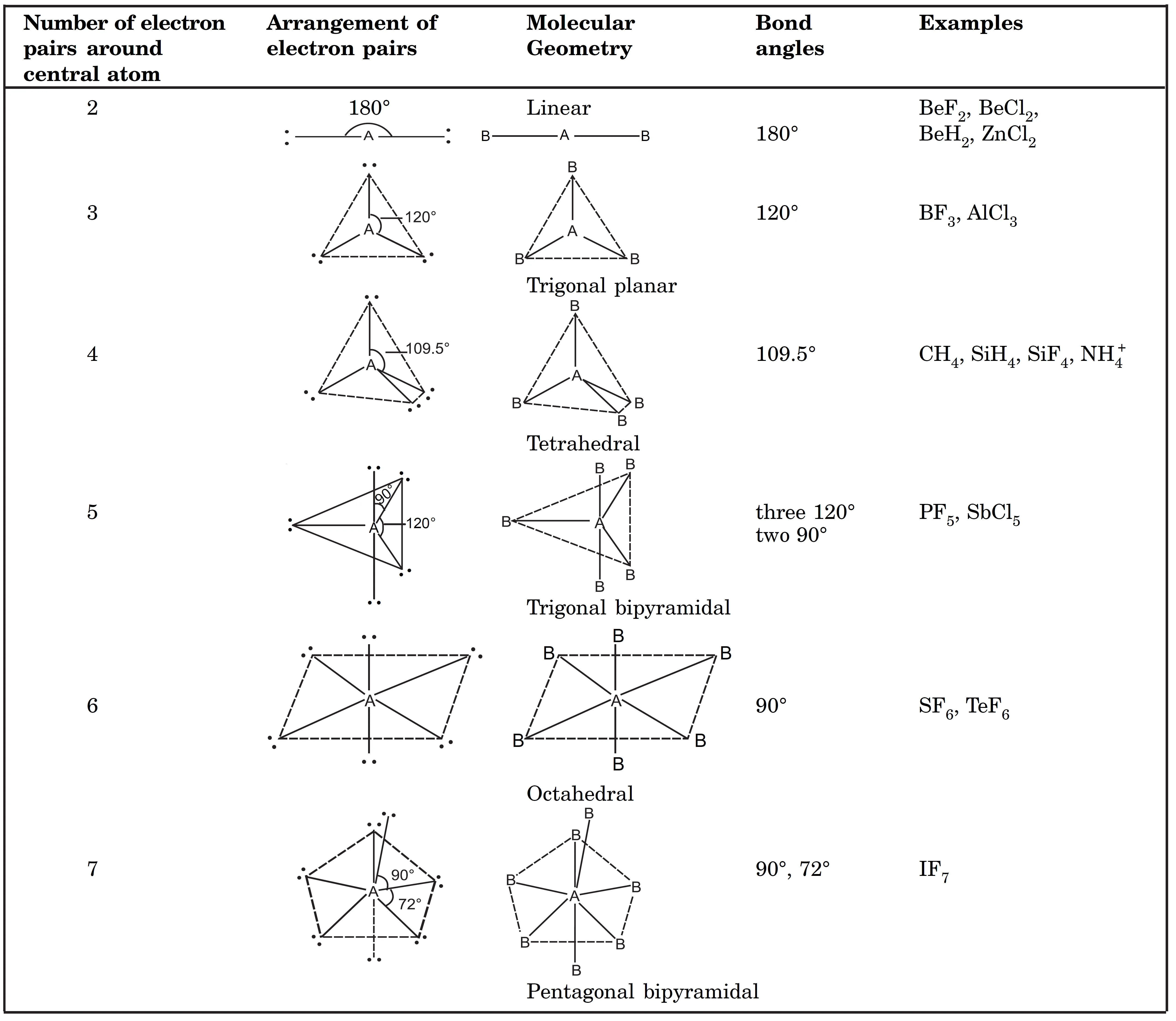

Following Table shows the Geometries of molecules on the basis of VSEPR theory.

Number of electron pairs around central atom	Arrangement of electron pairs	Molecular Geometry	Bond Angles	Examples
2		Linear	$180^{\circ}$	$BeF_{2}$, $BeCl_{2}$, $BeH_{2}$, $ZnCl_{2}$
3		Trigonal planar	$120^{\circ}$	$BF_{3}$, $AlCl_{3}$
4		Tetrahedral	$109.5^{\circ}$	$CH_{4}$, $SiH_{4}$, $SiF_{4}$, $NH_{4}^{+}$
5	Three at $120^{\circ}$, two at $90^{\circ}$	Trigonal bipyramidal	$120^{\circ}$, $90^{\circ}$	$PF_{5}$, $SbCl_{5}$
6		Octahedral	$90^{\circ}$	$SF_{6}$, $TeF_{6}$
7	Five at $72^{\circ}$, two at $90^{\circ}$	Pentagonal bipyramidal	$72^{\circ}$, $90^{\circ}$	$IF_{7}$

---

Short Answer Conceptual Type Questions (SAT) on Molecular Geometry

Q1. Why does BeF₂ have a linear geometry?

Answer: BeF₂ has two electron pairs around the central atom. To minimize repulsion, they are arranged 180^o apart, giving a linear geometry.

---

Q2. What is the bond angle in BF₃ and why?

Answer: BF₃ has three bond pairs around boron. They repel each other equally and arrange themselves at 120^o, giving a trigonal planar geometry.

---

Q3. Why does CH₄ have a tetrahedral shape?

Answer: Carbon has four bond pairs with hydrogen. To minimize repulsion, these pairs adopt a tetrahedral arrangement with bond angles of 109.5^o.

---

Q4. Explain why PF₅ is trigonal bipyramidal.

Answer: In PF₅, phosphorus has five bond pairs. Three bond pairs lie in one plane at 120^o (equatorial), and two lie perpendicular to this plane at 90^o (axial). Hence, the shape is trigonal bipyramidal.

---

Q5. Give the geometry and bond angle of SF₆.

Answer: SF₆ has six bond pairs around sulfur. They are arranged symmetrically at 90^o, giving an octahedral geometry.

---

Q6. Why does IF₇ adopt a pentagonal bipyramidal structure?

Answer: IF₇ has seven bond pairs around iodine. Five lie in a plane forming a pentagon (72o apart), and two occupy positions above and below the plane at 90o.

---

Multiple Choice Questions (MCQs) on Molecular Geometry

Q1. The bond angle in CH₄ is:
(a) 90^o
(b) 109.5^o
(c) 120^o
(d) 180^o

Answer: (b) 109.5^o
Explanation: Four bond pairs form a tetrahedral geometry with bond angle 109.5^o.

---

Q2. Which of the following molecules is trigonal planar?
(a) NH₃
(b) BF₃
(c) H₃O
(d) CH₃

Answer: (b) BF₃
Explanation: BF₃ has three bond pairs and no lone pair, so geometry is trigonal planar.

---

Q3. In PF₅, the equatorial bond angle is:
(a) 90^o
(b) 72^o
(c) 120^o
(d) 180^o

Answer: (c) 120^o
Explanation: In trigonal bipyramidal geometry, equatorial bonds are at 120^o.

---

Q4. The geometry of SF₆ is:
(a) Tetrahedral
(b) Trigonal planar
(c) Octahedral
(d) Pentagonal bipyramidal

Answer: (c) Octahedral
Explanation: Six bond pairs around sulfur lead to octahedral geometry.

---

Q5. Which molecule has bond angles of both 72^o and 90^o ?
(a) BeF₂
(b) PF₅
(c) IF₇
(d) SF₆

Answer: (c) IF₇
Explanation: Pentagonal bipyramidal structure has five bonds in a pentagon (72^o) and two axial bonds at 90^o.

---

Assertion–Reason Questions on Molecular Geometry

Q1.
Assertion (A): BF₃ is planar with bond angles of 120^o.
Reason (R): Boron in BF₃ has three bond pairs and no lone pairs.

Answer: Both A and R are true, and R is the correct explanation of A.

---

Q2.
Assertion (A): CH₄ has bond angles of 109.5^o.
Reason (R): The four bond pairs of CH₄ repel equally and orient themselves in a tetrahedral arrangement.

Answer: Both A and R are true, and R is the correct explanation of A.

---

Q3.
Assertion (A): In SF₆, all bond angles are 90^o.
Reason (R): SF₆ adopts an octahedral geometry.

Answer: Both A and R are true, and R is the correct explanation of A.

---

Q4.
Assertion (A): In PF₅, all bond angles are equal.
Reason (R): PF₅ has five bonds around phosphorus.

Answer: A is false, R is true.
Explanation: In PF₅, there are two types of bond angles — 90^o (axial-equatorial) and 120^o (equatorial-equatorial).

---

Case Study Based Questions on Molecular Geometry

Passage:
The shape of molecules can be predicted using VSEPR theory, which depends on the number of electron pairs around the central atom. Molecules like $BeF_{2}$, $BF_{3}$, $CH_{4}$, $PF_{5}$, $SF_{6}$, and $IF_{7}$ adopt linear, trigonal planar, tetrahedral, trigonal bipyramidal, octahedral, and pentagonal bipyramidal geometries, respectively. Bond angles vary accordingly to minimize repulsion between electron pairs.

Questions:

Q1. What is the bond angle in $BeF_{2}$?
Answer: $180^{\circ}$ (linear geometry).

Q2. Why is $CH_{4}$ not planar but tetrahedral?
Answer: Four bond pairs repel each other equally and orient at $109.5^{\circ}$ in 3D space to minimize repulsion.

Q3. Which molecule among $PF_{5}$, $SF_{6}$, and $IF_{7}$ has the highest coordination number?
Answer: $IF_{7}$ (coordination number 7).

Q4. Why does $SF_{6}$ adopt octahedral geometry instead of trigonal bipyramidal?
Answer: $SF_{6}$ has six bond pairs, which minimize repulsion by arranging symmetrically at $90^{\circ}$ in an octahedral structure.
